X2L de RADXA: Probablemente el SBC con procesador Intel más barato del mundo/mundial - Página 8 de 10

Contenido

Ubuntu 23.04

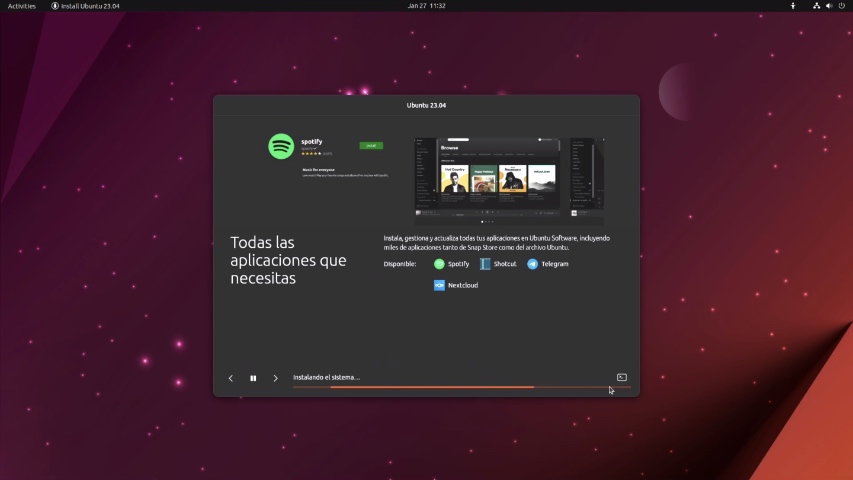

Como era de esperar no hemos tenido problema alguno en la instalación de la última versión de Ubuntu 23.04 …

y repitiendo nuestra pruebas típicas para este sistema operativo.

x2l@x2l-aa:~$ cat /etc/lsb-release
DISTRIB_ID=Ubuntu
DISTRIB_RELEASE=23.04
DISTRIB_CODENAME=lunar
DISTRIB_DESCRIPTION="Ubuntu 23.04"
x2l@x2l-aa:~$ uname -a
Linux x2l-aa 6.2.0-39-generic #40-Ubuntu SMP PREEMPT_DYNAMIC Tue Nov 14 14:18:00 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux
x2l@x2l-aa:~$ free -mh
total usado libre compartido búf/caché disponible
Mem: 7,6Gi 1,3Gi 4,5Gi 221Mi 2,3Gi 6,3Gi
Inter: 4,0Gi 0B 4,0Gi
x2l@x2l-aa:~$ df -mh
S.ficheros Tamaño Usados Disp Uso% Montado en
tmpfs 778M 1,9M 776M 1% /run
/dev/nvme0n1p5 41G 13G 27G 32% /
tmpfs 3,8G 0 3,8G 0% /dev/shm
tmpfs 5,0M 8,0K 5,0M 1% /run/lock
/dev/nvme0n1p1 96M 34M 63M 35% /boot/efi
tmpfs 778M 100K 778M 1% /run/user/1000
/dev/sda1 128M 8,0K 128M 1% /media/x2l/RPI-RP2
x2l@x2l-aa:~$

x2l@x2l-aa:~$ cat /etc/lsb-release

DISTRIB_ID=Ubuntu

DISTRIB_RELEASE=23.04

DISTRIB_CODENAME=lunar

DISTRIB_DESCRIPTION="Ubuntu 23.04"

x2l@x2l-aa:~$ uname -a

Linux x2l-aa 6.2.0-39-generic #40-Ubuntu SMP PREEMPT_DYNAMIC Tue Nov 14 14:18:00 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux

x2l@x2l-aa:~$ free -mh

total usado libre compartido búf/caché disponible

Mem: 7,6Gi 1,3Gi 4,5Gi 221Mi 2,3Gi 6,3Gi

Inter: 4,0Gi 0B 4,0Gi

x2l@x2l-aa:~$ df -mh

S.ficheros Tamaño Usados Disp Uso% Montado en

tmpfs 778M 1,9M 776M 1% /run

/dev/nvme0n1p5 41G 13G 27G 32% /

tmpfs 3,8G 0 3,8G 0% /dev/shm

tmpfs 5,0M 8,0K 5,0M 1% /run/lock

/dev/nvme0n1p1 96M 34M 63M 35% /boot/efi

tmpfs 778M 100K 778M 1% /run/user/1000

/dev/sda1 128M 8,0K 128M 1% /media/x2l/RPI-RP2

x2l@x2l-aa:~$

También, como no podía ser menos, hemos utilizado el típico SBC-BENCH (versión Review, claro)

x2l@x2l-aa:~$ wget https://raw.githubusercontent.com/ThomasKaiser/sbc-bench/master/sbc-bench.sh
--2024-02-03 19:51:40--  https://raw.githubusercontent.com/ThomasKaiser/sbc-bench/master/sbc-bench.sh
Resolviendo raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.111.133, 185.199.110.133, ...
Conectando con raw.githubusercontent.com (raw.githubusercontent.com)[185.199.108.133]:443... conectado.
Petición HTTP enviada, esperando respuesta... 200 OK
Longitud: 455195 (445K) [text/plain]
Guardando como: ‘sbc-bench.sh’

sbc-bench.sh                    100%[====================================================>] 444,53K  --.-KB/s    en 0,02s

2024-02-03 19:51:40 (23,4 MB/s) - ‘sbc-bench.sh’ guardado [455195/455195]

x2l@x2l-aa:~$ sudo /bin/bash ./sbc-bench.sh -r
Starting to examine hardware/software for review purposes...

sbc-bench v0.9.62

Installing needed tools: apt -f -qq -y install gcc make build-essential curl git sysstat powercap-utils binutils mmc-utils smartmontools stress-ng p7zip, tinymembench, ramlat, mhz, cpufetch, cpuminer. Done.
Checking cpufreq OPP. Done.
Executing tinymembench. Done.
Executing RAM latency tester. Done.
Executing OpenSSL benchmark. Done.
Executing 7-zip benchmark. Done.
Throttling test: heating up the device, 5 more minutes to wait. Done.
Checking cpufreq OPP again. Done (12 minutes elapsed).

Results validation:

  * Measured clockspeed not lower than advertised max CPU clockspeed
  * No swapping
  * Background activity (%system) OK
  * Too much other background activity: 0% avg, 9% max -> https://tinyurl.com/mr2wy5uv
  * Powercap detected. Details: "sudo powercap-info -p intel-rapl" -> https://tinyurl.com/4jh9nevj

Full results uploaded to http://sprunge.us/g26hyy




# aa aa  / Celeron J4125 @ 2.00GHz

Tested with sbc-bench v0.9.62 on Sat, 03 Feb 2024 20:06:47 +0100. Full info: [http://sprunge.us/g26hyy](http://sprunge.us/g26hyy)

### General information:

    Information courtesy of cpufetch:

    Name:                Intel Celeron J4125
    Microarchitecture:   Goldmont Plus
    Technology:          14nm
    Max Frequency:       2.700 GHz
    Cores:               4 cores
    AVX:                 No
    FMA:                 No
    L1i Size:            32KB (128KB Total)
    L1d Size:            24KB (96KB Total)
    L2 Size:             4MB
    Peak Performance:    43.20 GFLOP/s

    Celeron J4125 @ 2.00GHz, Kernel: x86_64, Userland: amd64

    CPU sysfs topology (clusters, cpufreq members, clockspeeds)
                     cpufreq   min    max
     CPU    cluster  policy   speed  speed   core type
      0        0        0      800    2700       -
      1        0        1      800    2700       -
      2        0        2      800    2700       -
      3        0        3      800    2700       -

7771 KB available RAM

### Policies (performance vs. idle consumption):

Status of performance related policies found below /sys:

    /sys/module/pcie_aspm/parameters/policy: default [performance] powersave powersupersave

### Clockspeeds (idle vs. heated up):

Before at 54.0°C:

    cpu0: OPP: 2700, Measured: 2666      (-1.3%)

After at 94.0°C:

    cpu0: OPP: 2700, Measured: 2674

### Performance baseline

  * memcpy: 5396.4 MB/s, memchr: 6604.8 MB/s, memset: 7413.9 MB/s
  * 16M latency: 186.4 173.6 186.9 174.1 186.6 176.7 164.0 176.2
  * 128M latency: 203.1 204.1 201.6 204.2 203.2 210.0 203.0 202.5
  * 7-zip MIPS (3 consecutive runs): 7635, 7441, 7407 (7490 avg), single-threaded: 2392
  * `aes-256-cbc     366469.63k   595476.89k   681257.47k   729132.03k   744068.44k   744701.95k`
  * `aes-256-cbc     368631.96k   592543.23k   681406.81k   730662.57k   743527.77k   746875.56k`

### PCIe and storage devices:

  * Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet: Speed 2.5GT/s, Width x1, driver in use: r8169
  * 119.2GB "NVME SSD 128GB" SSD as /dev/nvme0: Speed 5GT/s (downgraded), Width x4, 0% worn out, drive temp: 43°C
  * 128MB "Raspberry Pi RP2 Boot" as /dev/sda: USB, Driver=usb-storage, 12Mbps

### Challenging filesystems:

The following partitions are NTFS: nvme0n1p3,nvme0n1p4 -> https://tinyurl.com/mv7wvzct

### Swap configuration:

  * /swap.img on /dev/nvme0n1p5: 4.0G (0K used)

### Software versions:

  * Ubuntu 23.04
  * Compiler: /usr/bin/gcc (Ubuntu 12.3.0-1ubuntu1~23.04) 12.3.0 / x86_64-linux-gnu
  * OpenSSL 3.0.8, built on 7 Feb 2023 (Library: OpenSSL 3.0.8 7 Feb 2023)

### Kernel info:

  * `/proc/cmdline: BOOT_IMAGE=/boot/vmlinuz-6.2.0-39-generic root=UUID=fdcfc218-1d9e-4887-a1db-ac1d3cc9855c ro quiet splash vt.handoff=7`
  * Vulnerability Spec store bypass:    Mitigation; Speculative Store Bypass disabled via prctl
  * Vulnerability Spectre v1:           Mitigation; usercopy/swapgs barriers and __user pointer sanitization
  * Kernel 6.2.0-39-generic / CONFIG_HZ=250

Waiting for the device to cool down................................................................................... 41.0°

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

x2l@x2l-aa:~$ wget https://raw.githubusercontent.com/ThomasKaiser/sbc-bench/master/sbc-bench.sh

--2024-02-03 19:51:40-- https://raw.githubusercontent.com/ThomasKaiser/sbc-bench/master/sbc-bench.sh

Resolviendo raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.111.133, 185.199.110.133, ...

Conectando con raw.githubusercontent.com (raw.githubusercontent.com)[185.199.108.133]:443... conectado.

Petición HTTP enviada, esperando respuesta... 200 OK

Longitud: 455195 (445K) [text/plain]

Guardando como: ‘sbc-bench.sh’

sbc-bench.sh 100%[====================================================>] 444,53K --.-KB/s en 0,02s

2024-02-03 19:51:40 (23,4 MB/s) - ‘sbc-bench.sh’ guardado [455195/455195]

x2l@x2l-aa:~$ sudo /bin/bash ./sbc-bench.sh -r

Starting to examine hardware/software for review purposes...

sbc-bench v0.9.62

Installing needed tools: apt -f -qq -y install gcc make build-essential curl git sysstat powercap-utils binutils mmc-utils smartmontools stress-ng p7zip, tinymembench, ramlat, mhz, cpufetch, cpuminer. Done.

Checking cpufreq OPP. Done.

Executing tinymembench. Done.

Executing RAM latency tester. Done.

Executing OpenSSL benchmark. Done.

Executing 7-zip benchmark. Done.

Throttling test: heating up the device, 5 more minutes to wait. Done.

Checking cpufreq OPP again. Done (12 minutes elapsed).

Results validation:

* Measured clockspeed not lower than advertised max CPU clockspeed

* No swapping

* Background activity (%system) OK

* Too much other background activity: 0% avg, 9% max -> https://tinyurl.com/mr2wy5uv

* Powercap detected. Details: "sudo powercap-info -p intel-rapl" -> https://tinyurl.com/4jh9nevj

Full results uploaded to http://sprunge.us/g26hyy

# aa aa / Celeron J4125 @ 2.00GHz

Tested with sbc-bench v0.9.62 on Sat, 03 Feb 2024 20:06:47 +0100. Full info: [http://sprunge.us/g26hyy](http://sprunge.us/g26hyy)

### General information:

Information courtesy of cpufetch:

Name: Intel Celeron J4125

Microarchitecture: Goldmont Plus

Technology: 14nm

Max Frequency: 2.700 GHz

Cores: 4 cores

AVX: No

FMA: No

L1i Size: 32KB (128KB Total)

L1d Size: 24KB (96KB Total)

L2 Size: 4MB

Peak Performance: 43.20 GFLOP/s

Celeron J4125 @ 2.00GHz, Kernel: x86_64, Userland: amd64

CPU sysfs topology (clusters, cpufreq members, clockspeeds)

cpufreq min max

CPU cluster policy speed speed core type

0 0 0 800 2700 -

1 0 1 800 2700 -

2 0 2 800 2700 -

3 0 3 800 2700 -

7771 KB available RAM

### Policies (performance vs. idle consumption):

Status of performance related policies found below /sys:

/sys/module/pcie_aspm/parameters/policy: default [performance] powersave powersupersave

### Clockspeeds (idle vs. heated up):

Before at 54.0°C:

cpu0: OPP: 2700, Measured: 2666 (-1.3%)

After at 94.0°C:

cpu0: OPP: 2700, Measured: 2674

### Performance baseline

* memcpy: 5396.4 MB/s, memchr: 6604.8 MB/s, memset: 7413.9 MB/s

* 16M latency: 186.4 173.6 186.9 174.1 186.6 176.7 164.0 176.2

* 128M latency: 203.1 204.1 201.6 204.2 203.2 210.0 203.0 202.5

* 7-zip MIPS (3 consecutive runs): 7635, 7441, 7407 (7490 avg), single-threaded: 2392

* `aes-256-cbc 366469.63k 595476.89k 681257.47k 729132.03k 744068.44k 744701.95k`

* `aes-256-cbc 368631.96k 592543.23k 681406.81k 730662.57k 743527.77k 746875.56k`

### PCIe and storage devices:

* Realtek RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet: Speed 2.5GT/s, Width x1, driver in use: r8169

* 119.2GB "NVME SSD 128GB" SSD as /dev/nvme0: Speed 5GT/s (downgraded), Width x4, 0% worn out, drive temp: 43°C

* 128MB "Raspberry Pi RP2 Boot" as /dev/sda: USB, Driver=usb-storage, 12Mbps

### Challenging filesystems:

The following partitions are NTFS: nvme0n1p3,nvme0n1p4 -> https://tinyurl.com/mv7wvzct

### Swap configuration:

* /swap.img on /dev/nvme0n1p5: 4.0G (0K used)

### Software versions:

* Ubuntu 23.04

* Compiler: /usr/bin/gcc (Ubuntu 12.3.0-1ubuntu1~23.04) 12.3.0 / x86_64-linux-gnu

* OpenSSL 3.0.8, built on 7 Feb 2023 (Library: OpenSSL 3.0.8 7 Feb 2023)

### Kernel info:

* `/proc/cmdline: BOOT_IMAGE=/boot/vmlinuz-6.2.0-39-generic root=UUID=fdcfc218-1d9e-4887-a1db-ac1d3cc9855c ro quiet splash vt.handoff=7`

* Vulnerability Spec store bypass: Mitigation; Speculative Store Bypass disabled via prctl

* Vulnerability Spectre v1: Mitigation; usercopy/swapgs barriers and __user pointer sanitization

* Kernel 6.2.0-39-generic / CONFIG_HZ=250

Waiting for the device to cool down................................................................................... 41.0°

Comparando los resultados con los obtenidos en la misma prueba con el R86S o el R1 Pro, en aquella ocasión la CPU se “sobrecalentó” hasta los 63-68ºC mientras que en este X2L llega a los 94º… o más mostrando de nuevo que es IMPRESCINDIBLE un ventilador/disipador.
