WebScreen: Un proyecto brillante, joven y con ganas de comerse el mundo maker - Página 7 de 8

Índice

script.js

"use strict";

print("PCdeMano CPU BLINKING Dashboard START");

let config = sd_read_file("/webscreen.json");
let broker = "192.168.1.144";
let port = 1883;

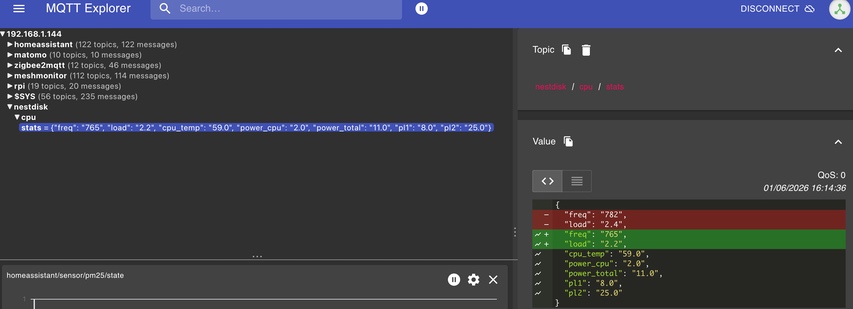

let topic = "nestdisk/cpu/stats";
let clientId = "pcdemano-webscreen";
let mqttUser = "";
let mqttPass = "";

if (config !== "") {
  let b = parse_json_value(config, "mqtt_broker");
  let p = parse_json_value(config, "mqtt_port");
  let t = parse_json_value(config, "mqtt_topic");
  let c = parse_json_value(config, "mqtt_client_id");
  let u = parse_json_value(config, "mqtt_user");
  let pw = parse_json_value(config, "mqtt_pass");
  if (b !== "") broker = b;
  if (p !== "") port = toNumber(p);
  if (t !== "") topic = t;
  if (c !== "") clientId = c;
  if (u !== "") mqttUser = u;
  if (pw !== "") mqttPass = pw;
}

let COLOR_RED = 0xE53935;
let COLOR_ORANGE = 0xFB8C00;
let COLOR_YELLOW = 0xFDD835;
let COLOR_WHITE = 0xFFFFFF;
let COLOR_MUTED = 0xAAAAAA;
let COLOR_GREEN = 0x3FB950;
let COLOR_FAIL = 0xFF4444;

let headerStyle = create_style();
style_set_text_font(headerStyle, 20);
style_set_text_color(headerStyle, COLOR_WHITE);

let statusStyle = create_style();
style_set_text_font(statusStyle, 14);
style_set_text_color(statusStyle, COLOR_MUTED);

let nameStyle = create_style();
style_set_text_font(nameStyle, 14);
style_set_text_color(nameStyle, COLOR_MUTED);

// Estilos dinámicos
let tempStyle = create_style();
let loadStyle = create_style();
let freqStyle = create_style();

style_set_text_font(tempStyle, 34);
style_set_text_font(loadStyle, 34);
style_set_text_font(freqStyle, 34);

style_set_text_color(tempStyle, COLOR_WHITE);
style_set_text_color(loadStyle, COLOR_WHITE);
style_set_text_color(freqStyle, COLOR_WHITE);

let headerLabel = create_label(185, 14);
obj_add_style(headerLabel, headerStyle, 0);
label_set_text(headerLabel, "CPU MONITOR");

let statusLabel = create_label(380, 16);
obj_add_style(statusLabel, statusStyle, 0);
label_set_text(statusLabel, "Conectando...");

// -------------------------------------------------------------
// ORDEN: LOAD → TEMP → FREQ
// -------------------------------------------------------------

let nameLoad = create_label(20, 80);
obj_add_style(nameLoad, nameStyle, 0);
label_set_text(nameLoad, "LOAD (%)");

let valLoad = create_label(30, 100);
obj_add_style(valLoad, loadStyle, 0);
label_set_text(valLoad, "---");

let nameTemp = create_label(215, 80);
obj_add_style(nameTemp, nameStyle, 0);
label_set_text(nameTemp, "TEMP (C)");

let valTemp = create_label(210, 100);
obj_add_style(valTemp, tempStyle, 0);
label_set_text(valTemp, "---");

let nameFreq = create_label(375, 80);
obj_add_style(nameFreq, nameStyle, 0);
label_set_text(nameFreq, "FREQ (MHz)");

let valFreq = create_label(385, 100);
obj_add_style(valFreq, freqStyle, 0);
label_set_text(valFreq, "---");

let topicLabel = create_label(8, 18);
obj_add_style(topicLabel, statusStyle, 0);
label_set_text(topicLabel, topic);

// -------------------------------------------------------------
// PARPADEO
// -------------------------------------------------------------
let blinkState = 0;
let blinkLoad = 0;
let blinkTemp = 0;
let blinkFreq = 0;

let blink_loop = function() {
    blinkState = 1 - blinkState;

    if (blinkLoad) {
        style_set_text_color(loadStyle, blinkState ? COLOR_WHITE : blinkLoad);
        obj_add_style(valLoad, loadStyle, 0);
    }

    if (blinkTemp) {
        style_set_text_color(tempStyle, blinkState ? COLOR_WHITE : blinkTemp);
        obj_add_style(valTemp, tempStyle, 0);
    }

    if (blinkFreq) {
        style_set_text_color(freqStyle, blinkState ? COLOR_WHITE : blinkFreq);
        obj_add_style(valFreq, freqStyle, 0);
    }
};

create_timer("blink_loop", 500);

// -------------------------------------------------------------
let wifiReady = 0;
let mqttConnected = 0;

let check_wifi = function() {
  if (wifiReady) return;
  if (!wifi_status()) return;

  wifiReady = 1;
  label_set_text(statusLabel, "WiFi OK");

  mqtt_init(broker, port);
  let ok = (mqttUser !== "" &amp;&amp; mqttPass !== "")
            ? mqtt_connect(clientId, mqttUser, mqttPass)
            : mqtt_connect(clientId);

  if (ok) {
    mqttConnected = 1;
    mqtt_subscribe(topic);
    mqtt_on_message("on_mqtt_msg");
    label_set_text(statusLabel, "Conectado");
    style_set_text_color(statusStyle, COLOR_GREEN);
  } else {
    label_set_text(statusLabel, "MQTT error");
    style_set_text_color(statusStyle, COLOR_FAIL);
  }
};

let testgif = create_image("/logobig.png", 150, 180);

// -------------------------------------------------------------
let main_loop = function() {
  if (!wifiReady) { check_wifi(); return; }
  if (!mqttConnected) return;

  mqtt_loop();
  if (!mqtt_has_message()) return;

  let payload = mqtt_get_payload();
  mqtt_msg_clear();
  if (payload === "") return;

  let freq = parse_json_value(payload, "freq");
  let load = parse_json_value(payload, "load");
  let temp = parse_json_value(payload, "cpu_temp");

  // Reset flags
  blinkLoad = 0;
  blinkTemp = 0;
  blinkFreq = 0;

  // -------------------------
  // CARGA CPU (load)
  // -------------------------
  if (load !== "") {
    let v = toNumber(load);
    label_set_text(valLoad, load);

    if (v &gt; 50) { style_set_text_color(loadStyle, COLOR_RED); style_set_text_font(loadStyle, 48); blinkLoad = COLOR_RED; }
    else if (v &gt; 20) { style_set_text_color(loadStyle, COLOR_ORANGE); style_set_text_font(loadStyle, 44); blinkLoad = COLOR_ORANGE; }
    else if (v &gt; 10) { style_set_text_color(loadStyle, COLOR_YELLOW); style_set_text_font(loadStyle, 40); }
    else { style_set_text_color(loadStyle, COLOR_WHITE); style_set_text_font(loadStyle, 34); }

    obj_add_style(valLoad, loadStyle, 0);
  }

  // -------------------------
  // TEMPERATURA CPU
  // -------------------------
  if (temp !== "") {
    let v = toNumber(temp);
    label_set_text(valTemp, temp);

    if (v &gt; 85) { style_set_text_color(tempStyle, COLOR_RED); style_set_text_font(tempStyle, 48); blinkTemp = COLOR_RED; }
    else if (v &gt; 75) { style_set_text_color(tempStyle, COLOR_ORANGE); style_set_text_font(tempStyle, 44); blinkTemp = COLOR_ORANGE; }
    else if (v &gt; 65) { style_set_text_color(tempStyle, COLOR_YELLOW); style_set_text_font(tempStyle, 40); }
    else { style_set_text_color(tempStyle, COLOR_WHITE); style_set_text_font(tempStyle, 34); }

    obj_add_style(valTemp, tempStyle, 0);
  }

  // -------------------------
  // FRECUENCIA CPU
  // -------------------------
  if (freq !== "") {
    let v = toNumber(freq);
    label_set_text(valFreq, freq);

    if (v &gt; 3000) { style_set_text_color(freqStyle, COLOR_RED); style_set_text_font(freqStyle, 48); blinkFreq = COLOR_RED; }
    else if (v &gt; 2000) { style_set_text_color(freqStyle, COLOR_ORANGE); style_set_text_font(freqStyle, 44); blinkFreq = COLOR_ORANGE; }
    else if (v &gt; 1300) { style_set_text_color(freqStyle, COLOR_YELLOW); style_set_text_font(freqStyle, 40); }
    else { style_set_text_color(freqStyle, COLOR_WHITE); style_set_text_font(freqStyle, 34); }

    obj_add_style(valFreq, freqStyle, 0);
  }
};

create_timer("main_loop", 1000);
print("CPU Dashboard ready, waiting for WiFi...");
